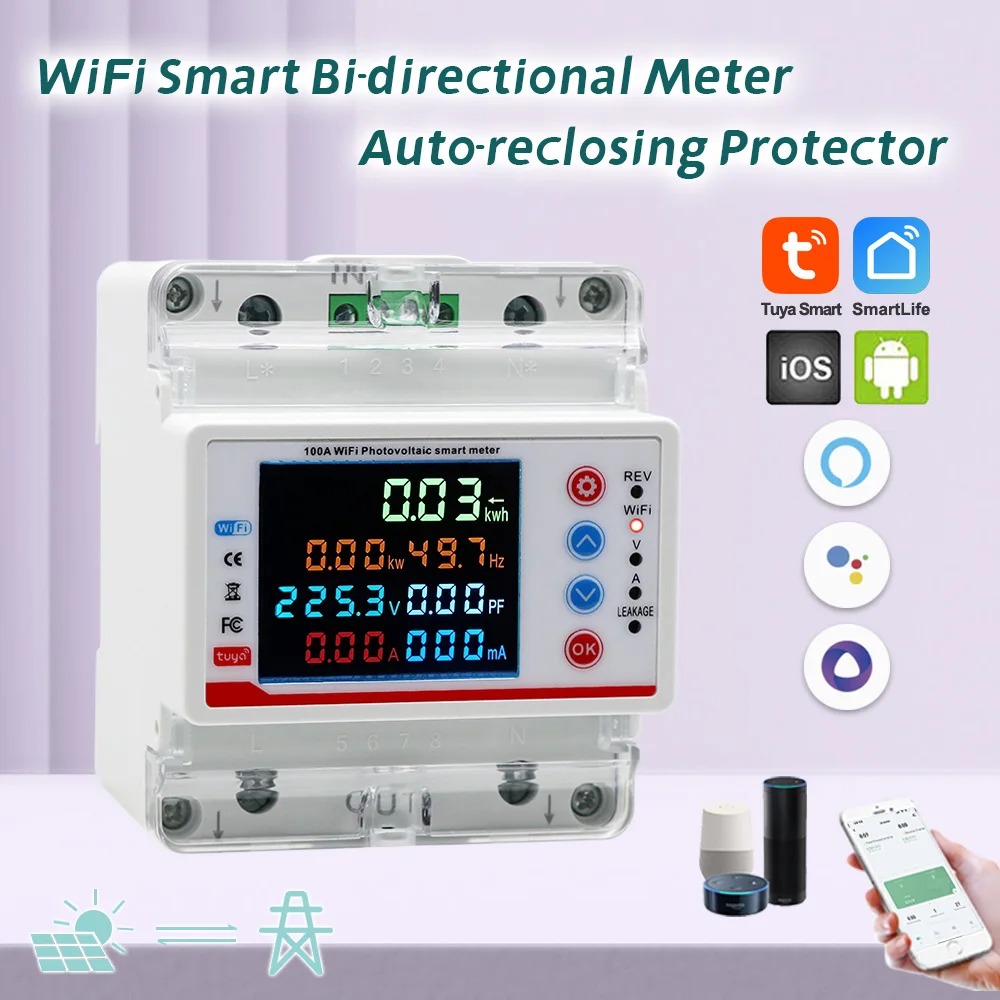

Tuya Smart Life WiFi Single Phase 100A Energy monitor Two-way Prepaid Meter Auto-reclosing Voltage Current Protector Timer

Note that the current leakage function is invalid. If you mind, please do not purchase it

Overview

This all-in-one design smart IOT device applied to AC110V or 220V/230V, 50/60Hz, rated current up to 100A single phase circuits in resident, commercial and industrial buildings with 2.4G WiFi, is a bi-directional measuring two-way meter to measure both positive active energy consumption on grid and negative active energy from solar, and offers prepayment as option; to remote control and set protections against over/under voltage, overcurrent, residual current(leakage), high temperature via mobile App anytime anywhere; and auto reclosing after protected conditions recovery to achieve non-attended management; programmable timing control to make your scheduled life efficiently and save electricity, and sharing device with your family or persons concerned in your team. It also supports local manual control without WiFi, and voice control through AI speaker, such as Amazon Alexa, Google Assistant, Yandex Alice, and etc.

Main specifications

Poles: single phase 2P(4 modules width);

Rated voltage: AC110V or 220V/230V (over/under voltage protection adjustable);

Rated current: 1~100A adjustable;

Frequency: 50/60Hz;

Display: LCD with backlight

Mounting: 35mm din-rail;

Functional features

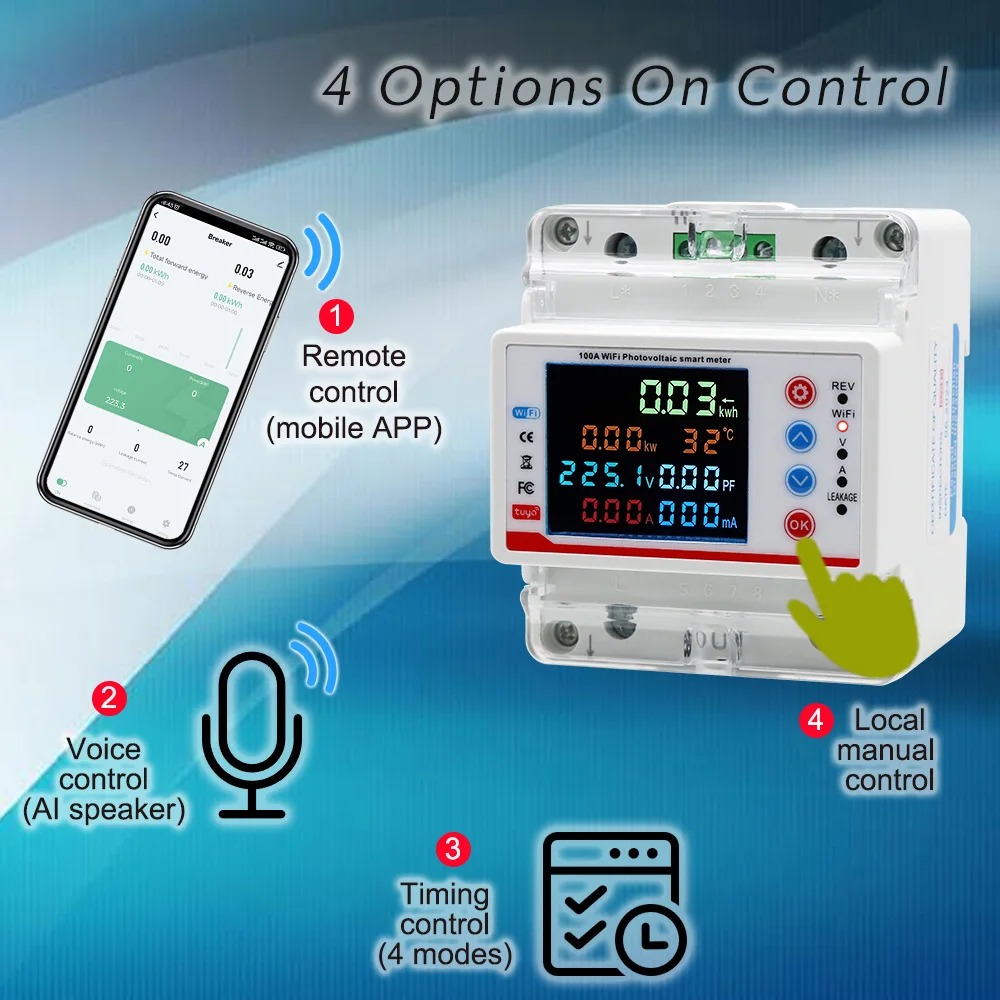

01. Four options on control:

- Remote control anytime anywhere (mobile app, Tuya Smart, Smart Life)

- Voice control (AI speaker, Alexa, Google, Alice, ...)

- Timing control (programmable schedule)

- Manual control (by button)

02. Monitor real-time electricity statistics on phone (A, V, mA, kW, kW/h, ℃);

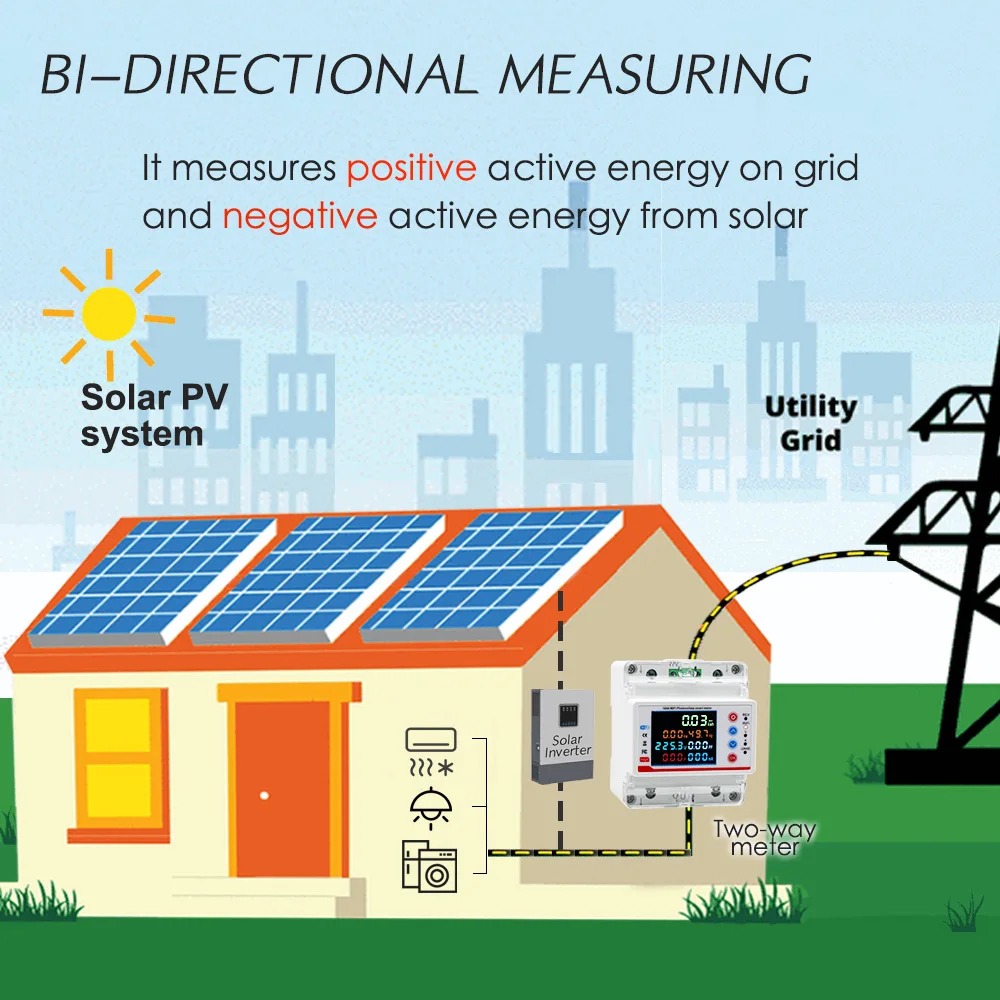

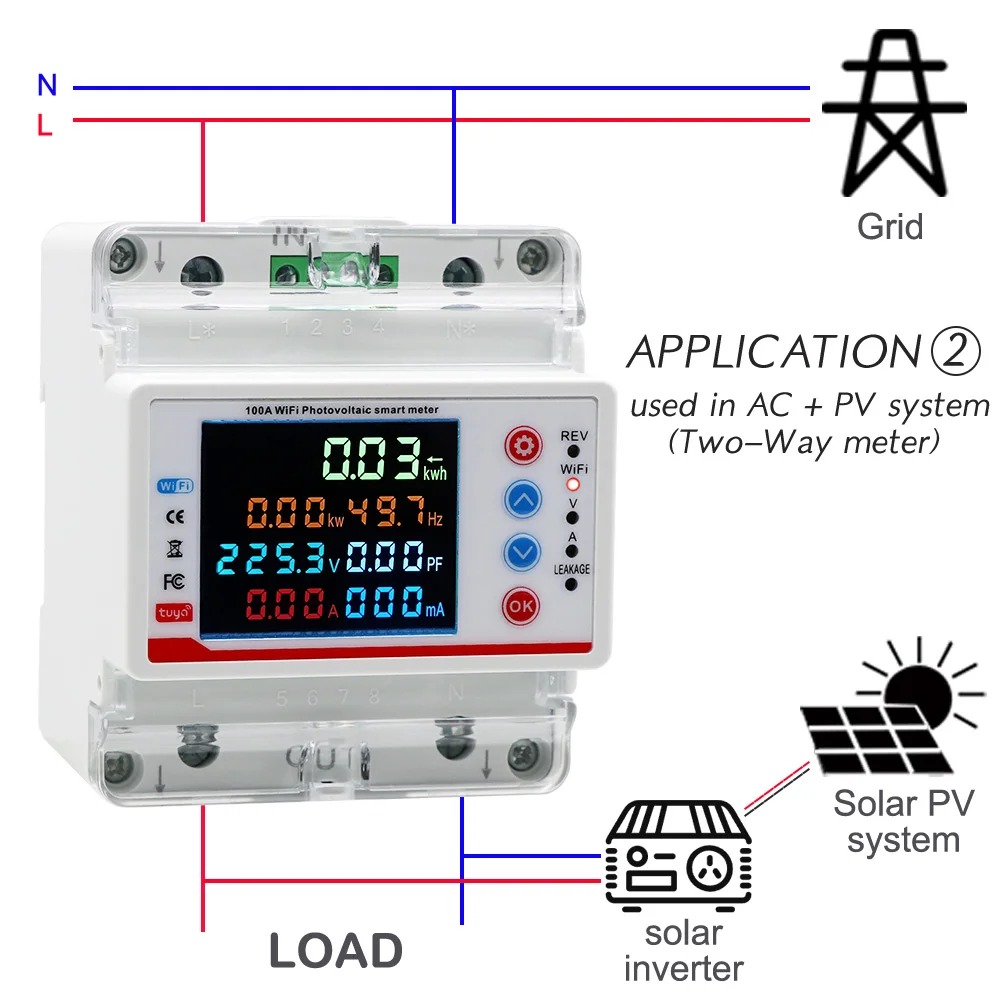

03. Bi-directional measuring positive and negative active energy consumption;

04. Prepaid metering mode available as option by switch;

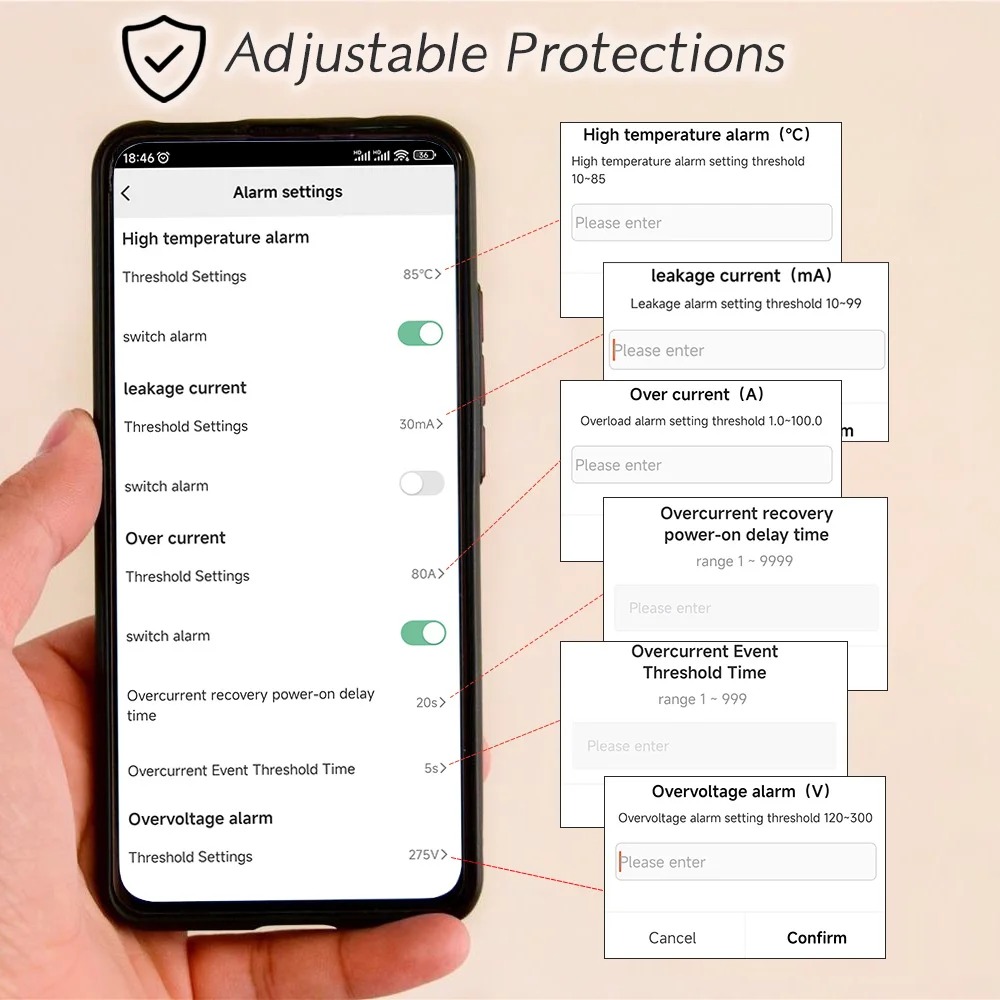

05. Adjustable protections against over/under voltage, overcurrent, residual current(leakage), high temperature;

06. Overcurrent protection: 1~100A adjustable, 100A as default (alarm disable as option);

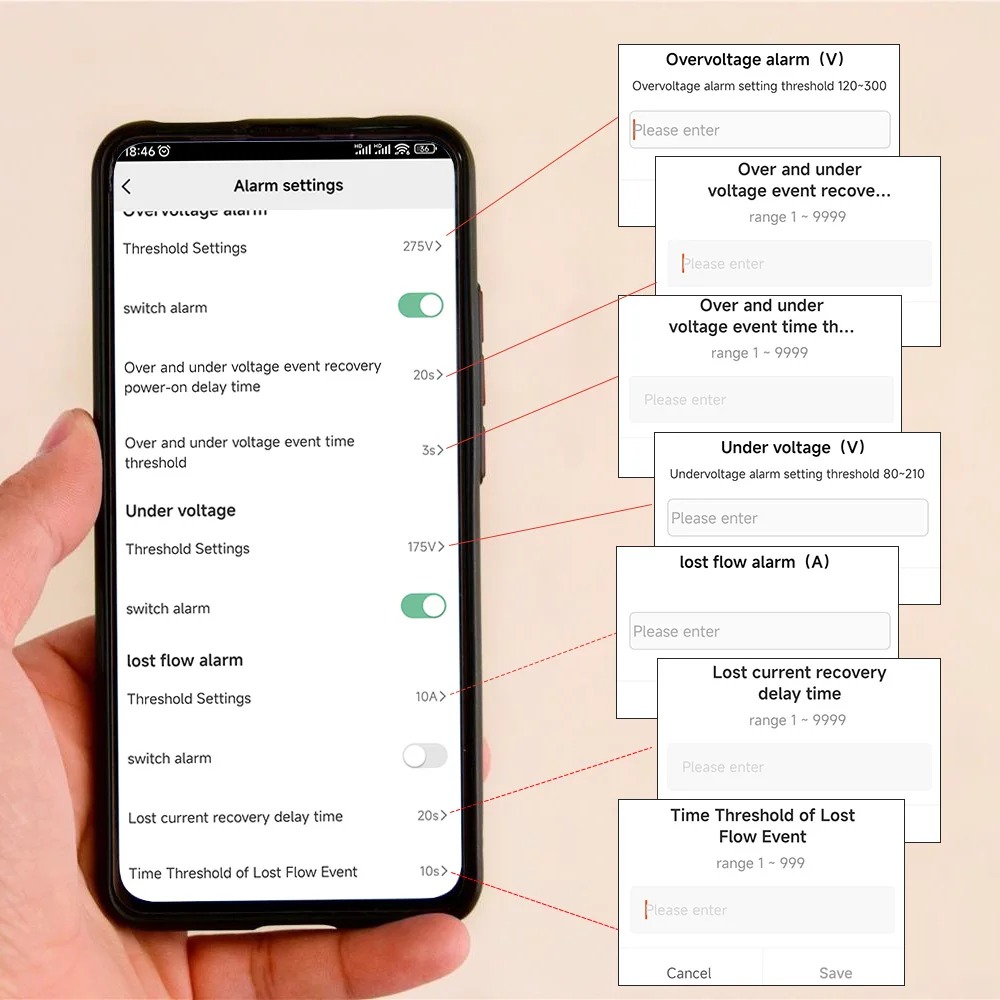

07. Over voltage protection: 120~300V adjustable, 275V as default (alarm disable as option);

08. Under voltage protection: 80~210V adjustable, 175V as default (alarm disable as option);

09. Residual current(leakage) protection: 10~150mA adjustable, 50mA as default (alarm disable as option);

10. Temperature protection: 10~85℃ adjustable, 80℃ as default (alarm disable as option);

11. Auto-reclosing after protected conditions recovery (disable as option);

12. Reclosing time delay: 1~99s adjustable, 30s as default;

13. Reclosing times allowed: 1~30 adjustable, 5 as default;

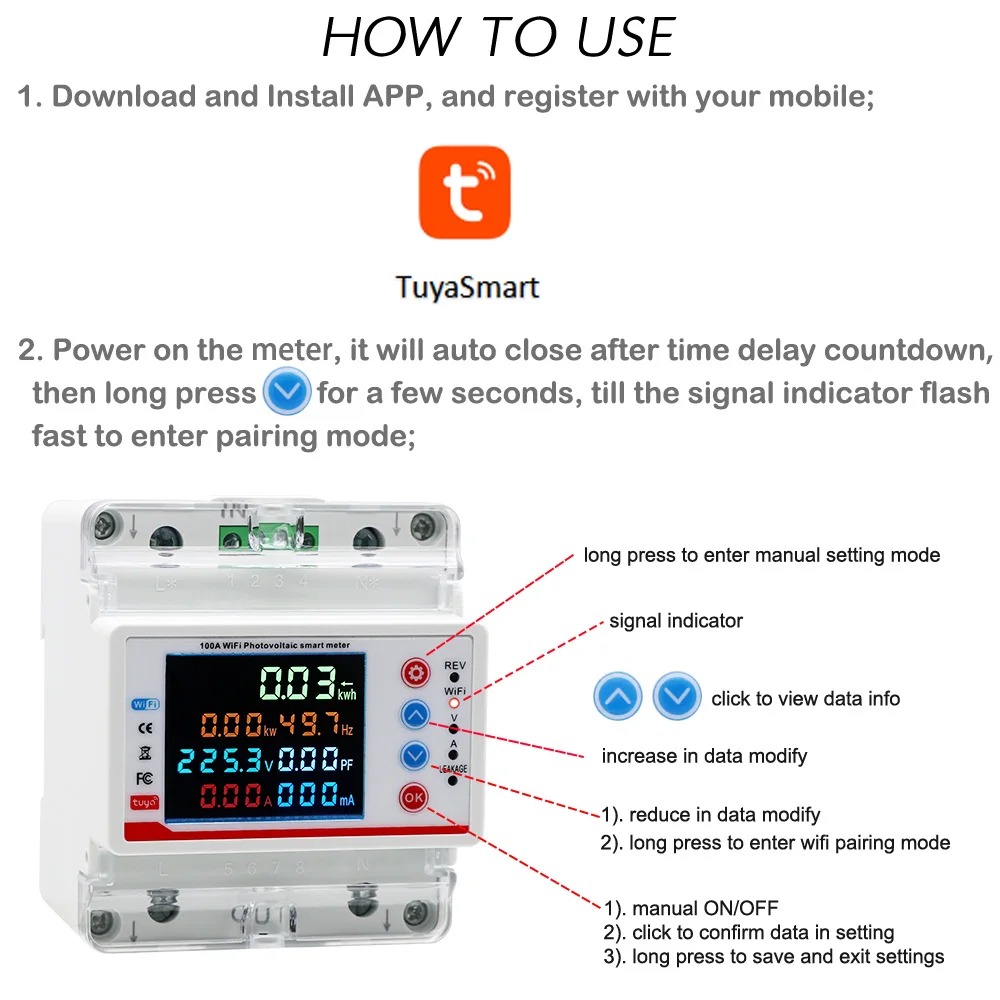

14. Local manual setting and operation on device (no need WiFi support);

15. Four modes timing schedule programmable on App;

16. Device sharing among family or your team;
